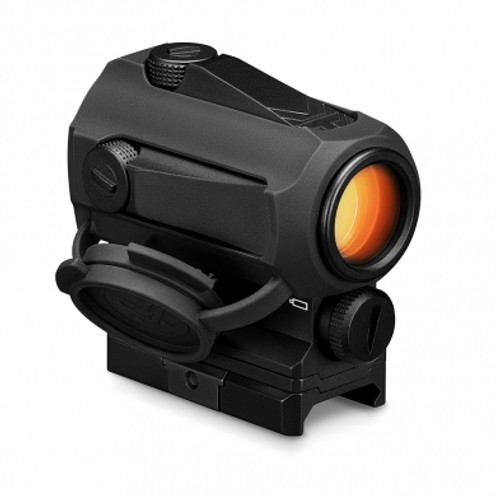

Vortex SPARC II Red Dot

Get on target fast with the SPARC II. Ultra-compact and lightweight, the SPARC II (Speed Point Aiming for Rapid Combat) is equally at home mounted on an AR-15 or shotgun. Digital rear facing controls for powering on/off and adjusting the 2 MOA daylight bright red dot brightness at ten intensity levels – automatically returning to the last dot intensity used when powered up. Rugged single-piece body machined from aircraft grade aluminum is o-ring sealed for waterproof and fog-proof performance.

The versatile multi-height mount system accommodates most firearms including AR-15s needing absolute or lower 1/3 co-witness heights, and mounts on standard Weaver or Picatinny bases (not included). A modular three-piece base offers four separate mounting heights for user- and weapon-specific customization: 18.0 mm (0.709 inches), 21 mm (0.823 inches), 37 mm (1.457 inches), 40 mm (1.575 inches).

SPARC II Red Dot Specifications

Magnification

• 1 x

Objective Lens Diameter

• 22 mm

Eye Relief

• Unlimited

Adjustment Graduation

• 1 MOA

Travel per Rotation

• 45 MOA

Max Elevation Adjustment

• 90 MOA

Max Windage Adjustment

• 90 MOA

Parallax Setting

• Parallax Free

Length

• 3.1 inches

Weight

• 5.9 ounces

Product Manuals and Information

•   Sparc II Red Dot Manual: Download

• Optical Features

  Fully Multi-Coated

  • Multiple anti-reflective coatings on all air-to-glass surfaces increase light transmission.

  Bright Red Dot

  • Display is highly visible in daylight.

  Construction Features

  Single-Piece Chassis

  • Compact and lightweight.

  Waterproof

  • O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.

  Fogproof

  • Nitrogen gas purging delivers fogproof, waterproof performance.

  Shockproof

  • Rugged construction withstands recoil and impact.

  Hard Anodized Finish

  • Highly durable low-glare matte finish.

  Operating Temperature

  • Operating Temperature Rated from -4 degrees to +158 degrees Fahrenheit

  Convenience Features

  Multi-Height Mount System

  • Includes a high mount, low mount, and a spacer that can be combined to provide various mounting heights: lower 1/3 co-witness (40 mm), absolute co-witness (37 mm), 21 mm, and 18 mm.

  Unlimited Eye Relief

  • Non-critical eye relief for rapid target acquisition.

  Adjustable Dot Intensity

  • Provides ten variable illumination settings—the lowest two settings are night-vision compatible.

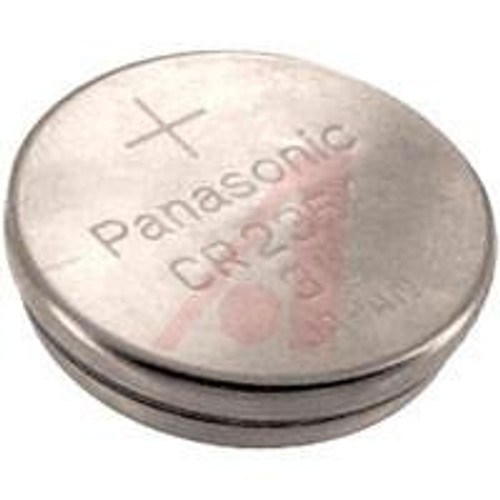

  Battery Life

  • 12-hour auto-shutdown feature maximizes battery life. Typical battery life is 300 hours at maximum brightness and 5,000 hours at minimum brightness setting.

• Reticle and Subtensions

  click on any image for larger view

  Full View



  Close Up



  Reticle Subtensions
