Product Description

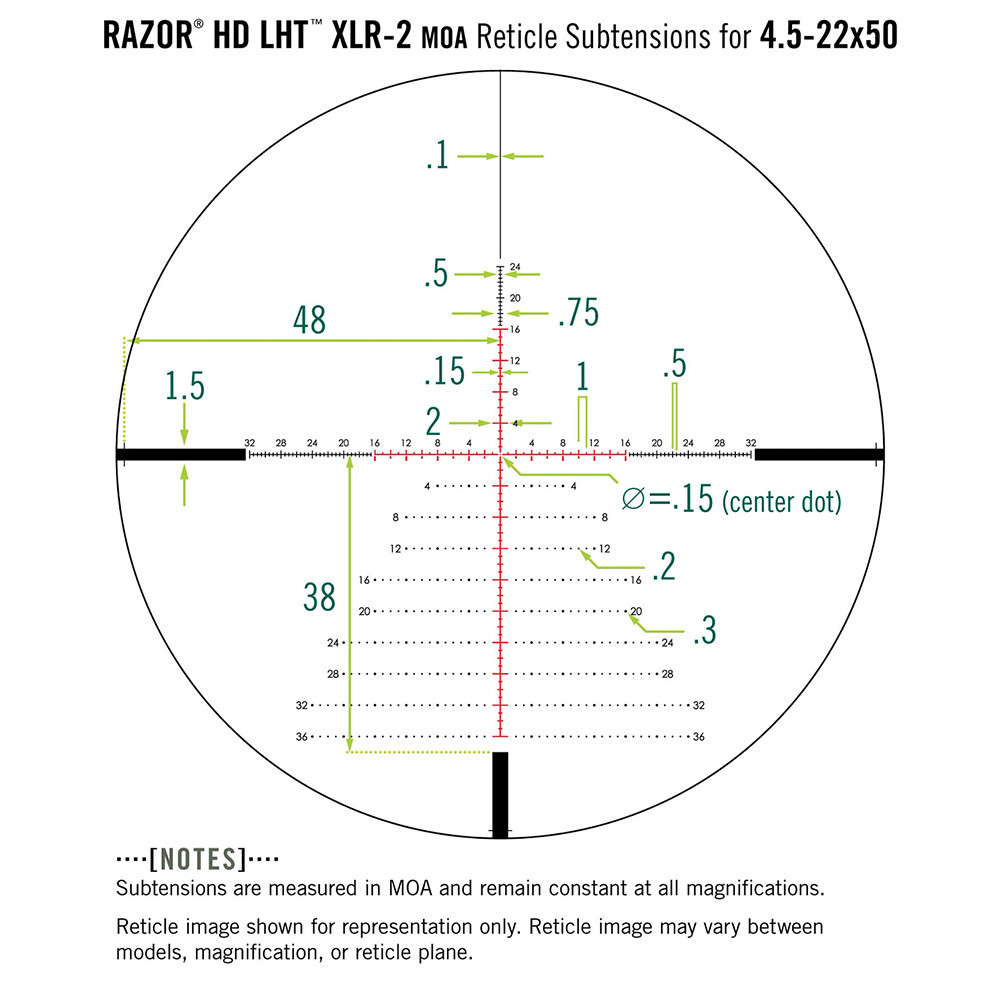

The Razor® HD LHT™ 4.5-22x50 FFP delivers a stunning HD optical system and rugged build in a first focal plane hunting scope that’s among the lightest in its class, perfect for open-country hunters. The XLR-2 reticle system is intuitive, easy to use, illuminated, and built to get the most out of the FFP reticle. Our RevStop™ Zero System provides a reliable return to zero if you need to dial in the field, and a locking elevation turret keeps your zero safe.
Magnification | 4.5 – 22 |
---|---|
Objective Lens Diameter | 50 mm |
Eye Relief | 4.0 inches |
Field of View | 23.5-4.7 ft/100 yards |
Tube Size | 30 mm |
Turret Style | Locking- Exposed |
Windage Turret Style | Capped |
Elevation Adjustment Graduation | .1 MRAD |
Windage Adjustment Graduation | .1 MRAD |
Elevation Travel per Rotation | 6 MRAD |
Windage Travel per Rotation | 6 MRAD |
Max Elevation Adjustment | 22.4 MRAD |
Max Windage Adjustment | 12.7 MRAD |
Parallax Setting | 25 yards to infinity |
Length | 13.3 inches |
Weight | 21.7 oz |
- Sunshade
- Tethered Lens Covers
- Lens Cloth
- RevStop Zero Ring
- CR2032 battery
Lengths | |||||
L1 | L2 | L3 | L4 | L5 | L6 |
13.3 | 1.9 | 2.2 | 5.6 | 3.4 | 4.2 |
Heights | |
H1 | H2 |
2.3 | 1.7 |
Dimensions measured in inches.
FEATURES |
|
First Focal Plane Reticle | The first focal plane XLR-2 reticle is optimized for long range hunting and shooting. The scale of the reticle remains in proportion to the zoomed image making for accurate holdovers and ranging at all magnifications. |
HD Optical System/td> | Optimized with select glass elements to deliver exceptional resolution, cut chromatic aberration and provide outstanding colour fidelity, edge-to-edge sharpness and light transmission. |
Locking Elevation Turret | Integrated locking mechanism prevents accidental adjustments. Elevation turret provides fast, accurate, easily read elevation adjustments. Patent pending. |
RevStop™ Zero System | Patented streamlined design offers an easy to set, rock-solid return to zero after turret adjustments. |
XR™ Plus Fully Multi-Coated | Ultimate anti-reflective coatings on all air-to-glass surfaces provide maximum light transmission for peak clarity and the pinnacle of low-light performance. |
APO System | Index-matched lenses correct color across the entire visual spectrum. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum/td> | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
ArmorTek ® | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments. |
Shockproof | Rugged construction withstands recoil and impact. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Low-Glare Matte Black Anodized | Corrosion and wear resistant anodization provides low glare matte surface and helps camouflage the shooter's position. |
